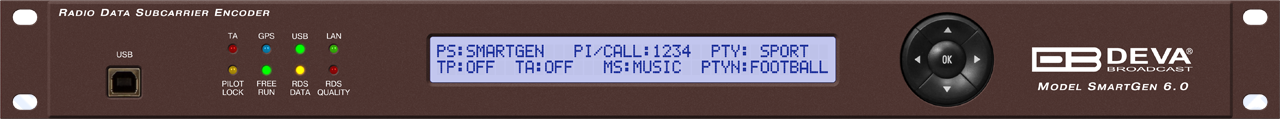

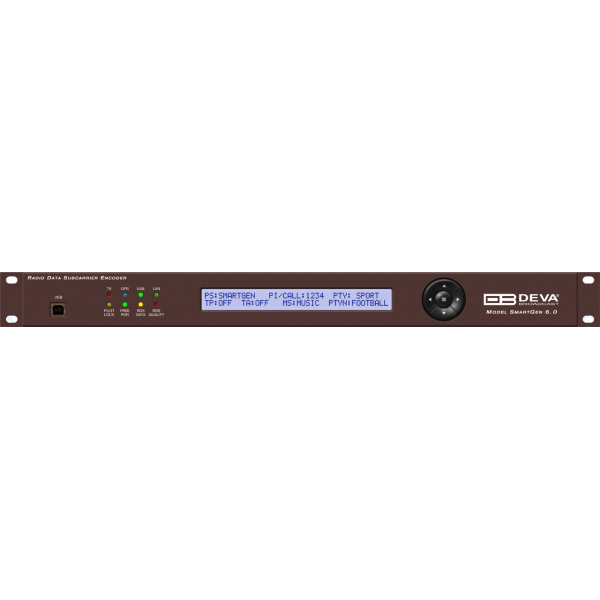

DEVA Broadcast SmartGen 6
Описание
Основываясь на новейшей технологии DEVA Broadcast SmartGen 6.0 гарантирует полностью цифровой синтез сигнала RDS с отличным качеством и спектральной чистотой. Это усовершенствованное устройство является экономически эффективным решением для отправки TMC, EWS Services и тегов песен через поддерживаемую функцию RT +.Локальные (RS232, USB) и удаленные (TCP / IP, UDP / IP) интерфейсы обеспечивают быструю и полную интеграцию RDS / RBDS-кодера с другими функциями станции, включая потоки сообщений для цифрового радио и веб-вещания. SmartGen 6 поставляется с двумя отдельными выходами: один для RDS + MPX и один для RDS. Потребность в высокоточном источнике времени удовлетворяется не только поддерживаемым SNTP, но и встроенным GPS-модулем.
Впечатляющей особенностью DEVA Broadcast SmartGen 6.0 является компонент программного обеспечения агента SNMP, который сообщает информацию через SNMP одному или нескольким административным компьютерам (менеджерам). DEVA Broadcast SmartGen 6.0 соответствует SNMPv2C. Также доступна функция SNMP-ловушек или уведомление по электронной почте для пользовательских предупреждений.
Технические характеристики DEVA Broadcast SmartGen 6.0:
Pilot/MPX Input Yes
MPX/RDS Output 0 to 4095 mV

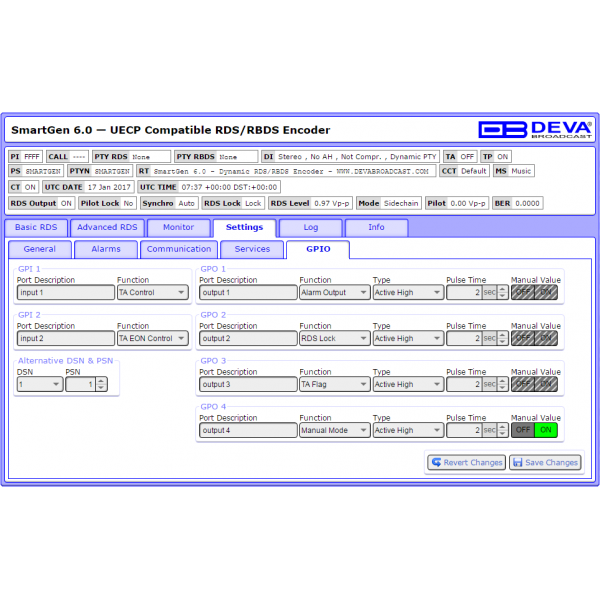

Inputs/Outputs 2 x GPI, 4x GPO user-defined functionality

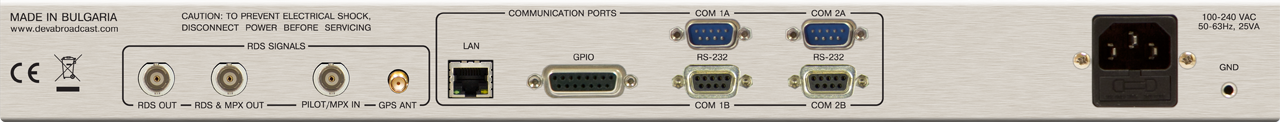

Communication Port 2xRS232, USB, LAN
Synchronization External (Pilot or MPX) / Internal / Auto
Synchronization Monitoring Yes
RDS Level adjustment Digitally controlled
Phase adjustment Yes, 0 ÷ 359.9°
Separate outputs for RDS+MPX and for RDS only Yes
Command to activate the RDS SCA Yes
Side Chain Mode, Loop through mode, Bypass feature Yes
RDS Subcarrier 100% Digitally Generated Shape / Bypass: 0 dB
Pilot synchronization Input Level: -50dBu to +12dBu / Frequency: 19kHz, ±3Hz
EN50067 compliant Yes
Accurate Clock Time (CT) Sync with Internet Connection Yes
Remote TA actuation for Traffic Announcements Yes

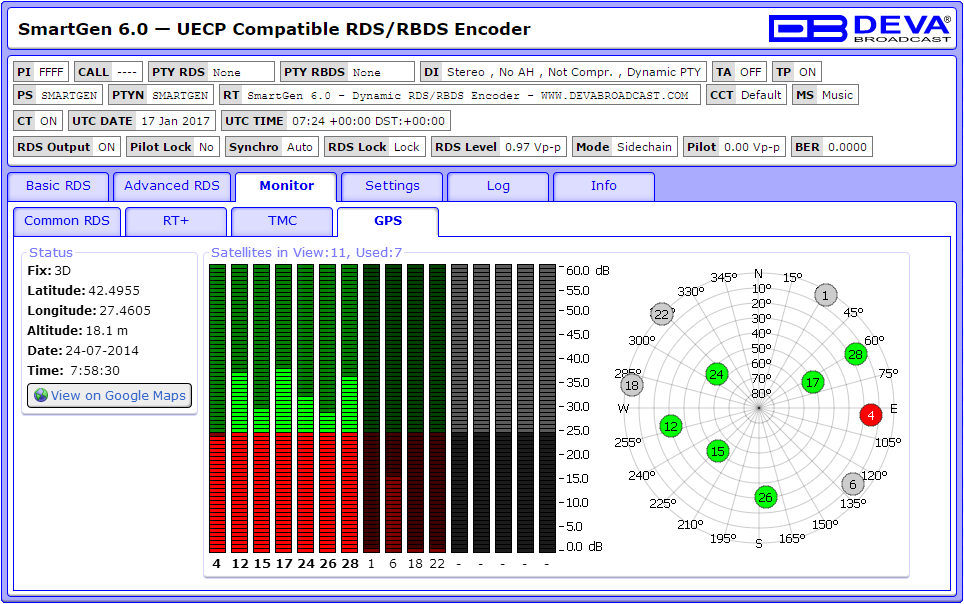

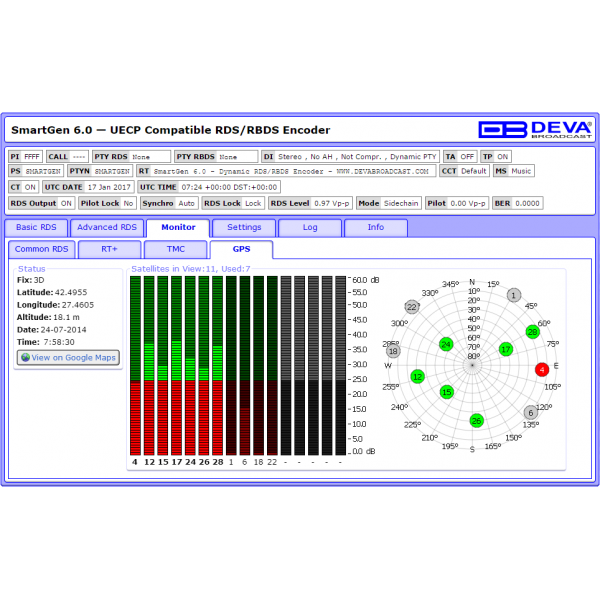

GPS module for automatic synchronization of the built-in clock Yes

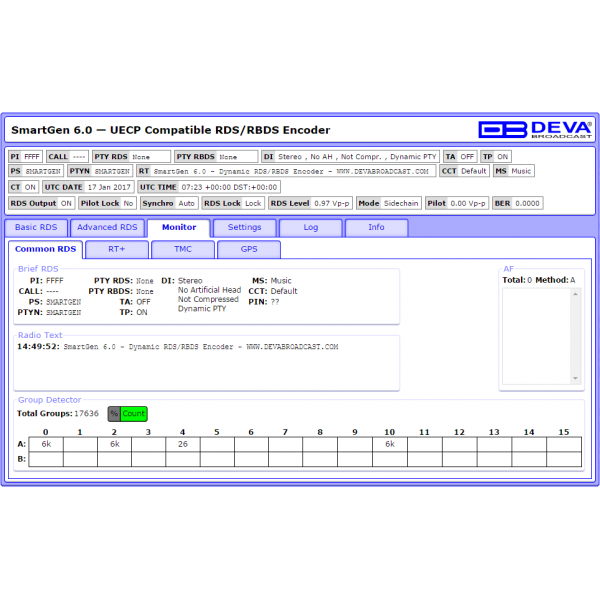

Fully independent RDS decoder for self-monitoring purposes Yes
Firmware can be upgraded in the field Yes
Front-panel LCD displays all programmed data Yes
Data may be entered on-site with Front-panel Buttons Yes
Operating Temperature 0°C ÷ 55°C
RDS Features
Group supported All
Group Sequence Configurable
PS 6 DSN x 8 PSN
PI 6 DSN x 8 PSN
PTY RDS/RBDS
AF Method A 25
AF Method B up to 100
RT Yes, 10 messages
RT rate adjustment Group Sequence
RT+ for songs and content tagging Yes
TP Yes
TA Control Command, Contact closure, Software
PTYN Yes
EON 8 PSN
CT Yes
TMC, EWS, IH, TDC Yes
Free Format Groups (FFG) Yes
Open Data Application (ODA) Yes
64-character Dynamic PS shown on all RDS/RBDS Radios Yes
Auto "parses" long messages for best text display Yes
Scrolling by character from 1 up to 8
Scrolling by word, Auto centering, Truncate long words Yes
Communication

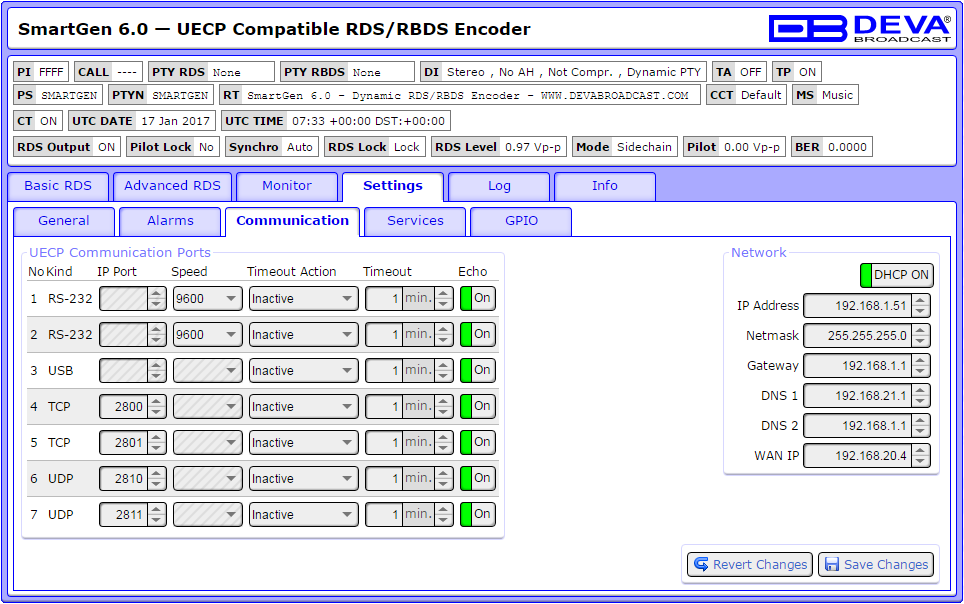

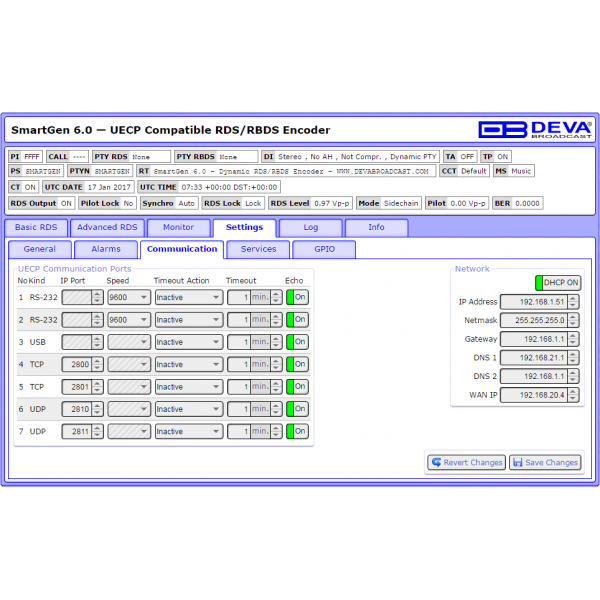

Communication Interfaces 2xRS232, USB, LAN
Connection with Automation Software Yes
Network Connectivity 2 TCP ports; 2 UDP ports
Scheduler Yes

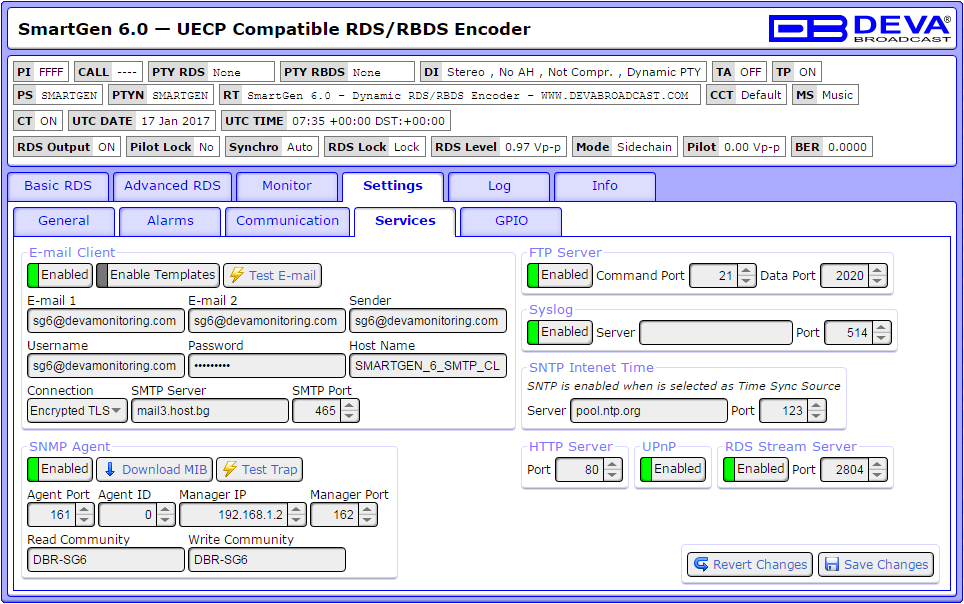

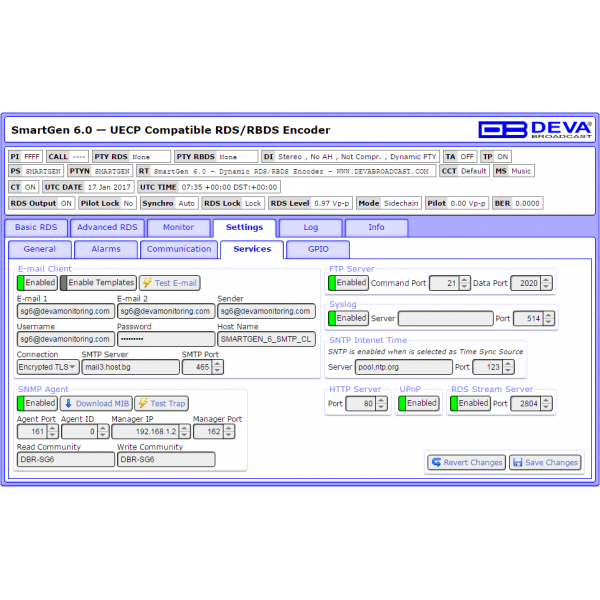

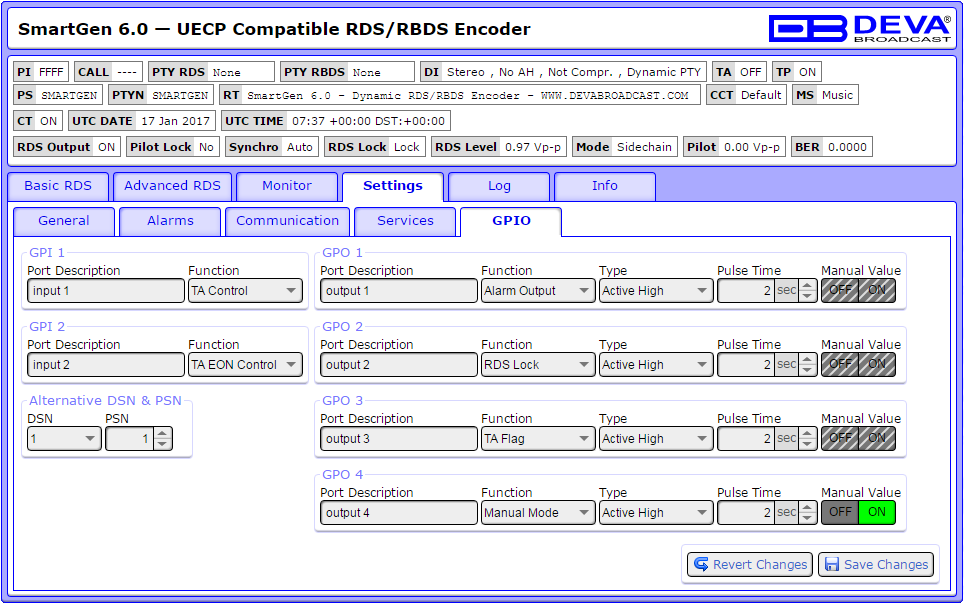

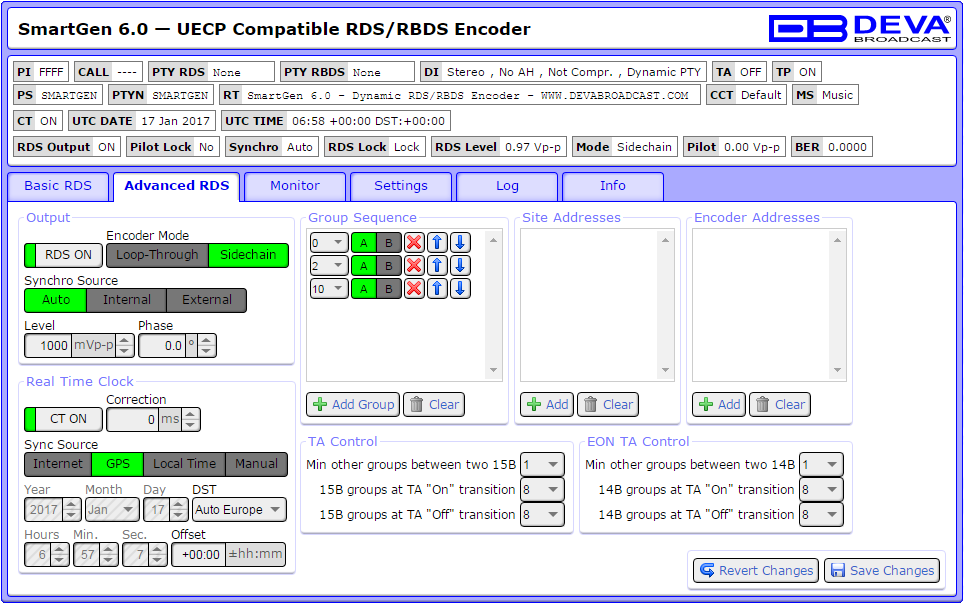

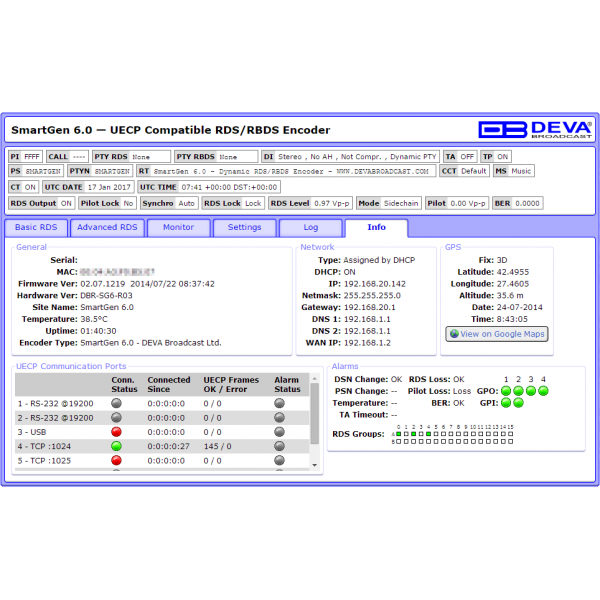

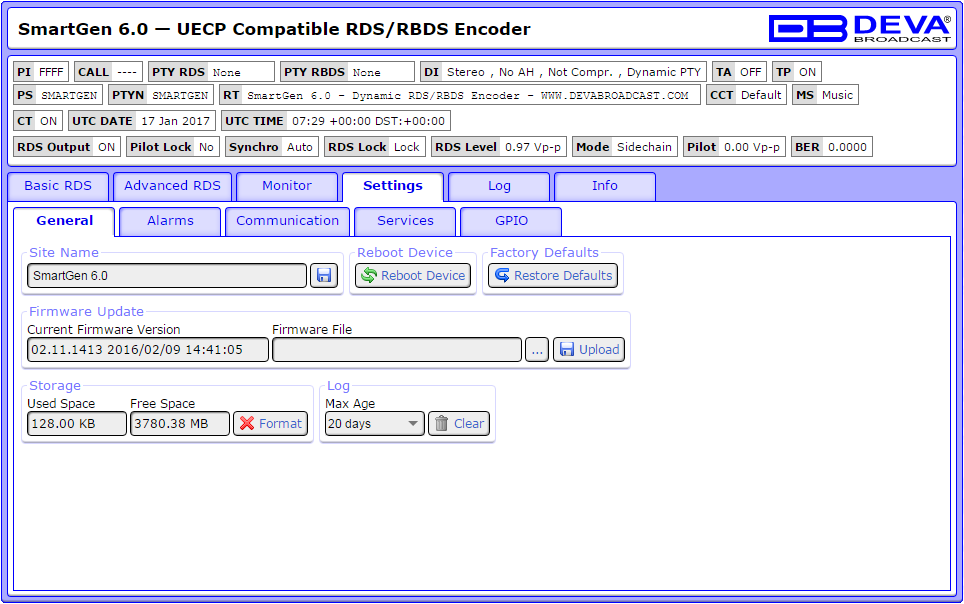

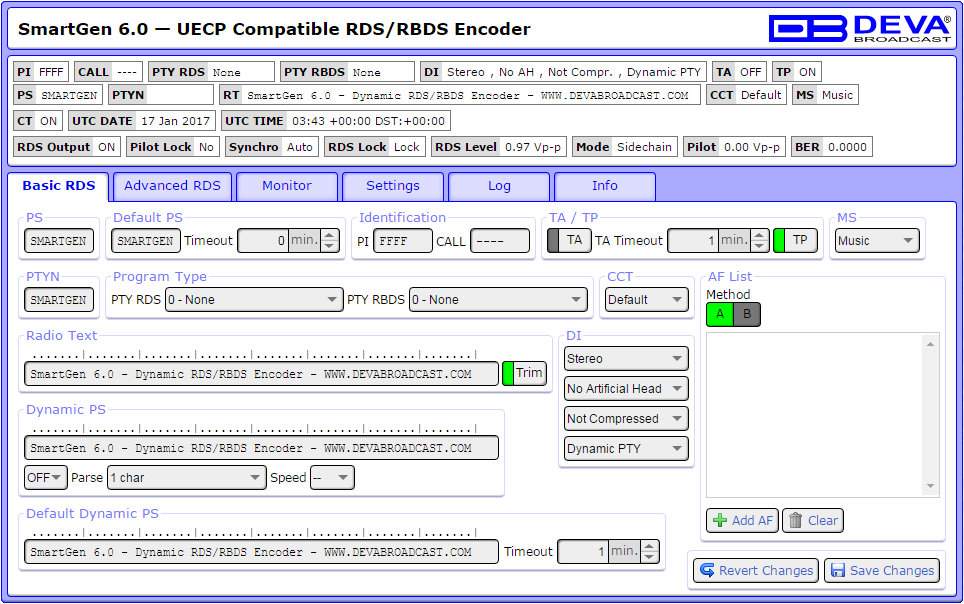

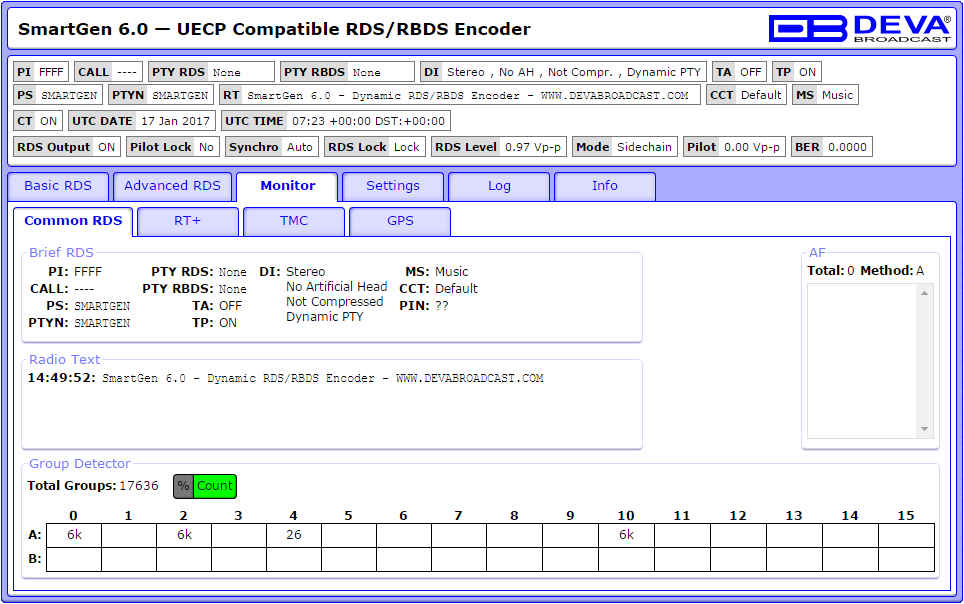

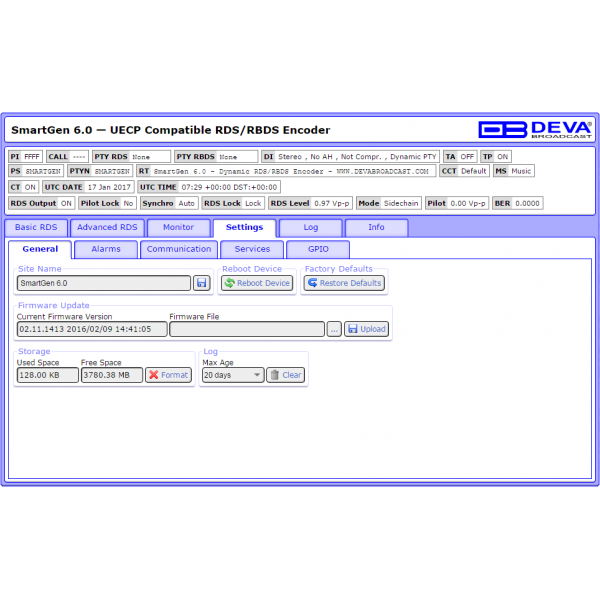

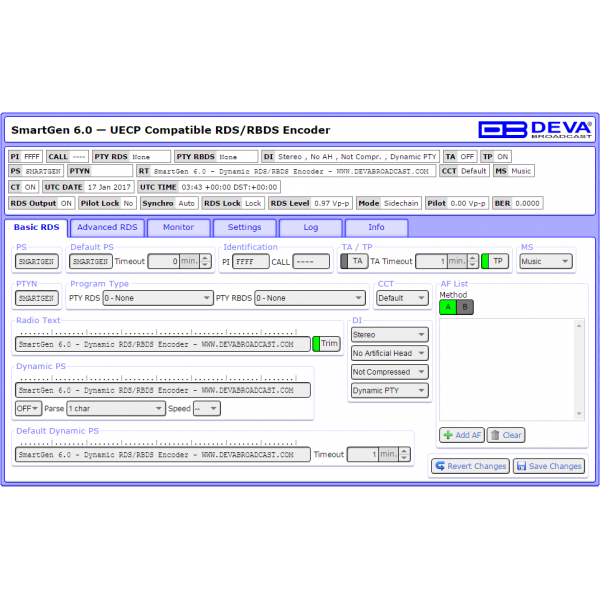

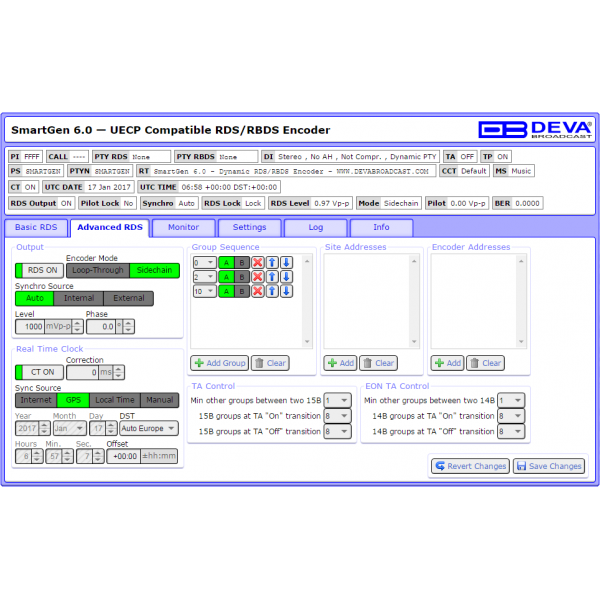

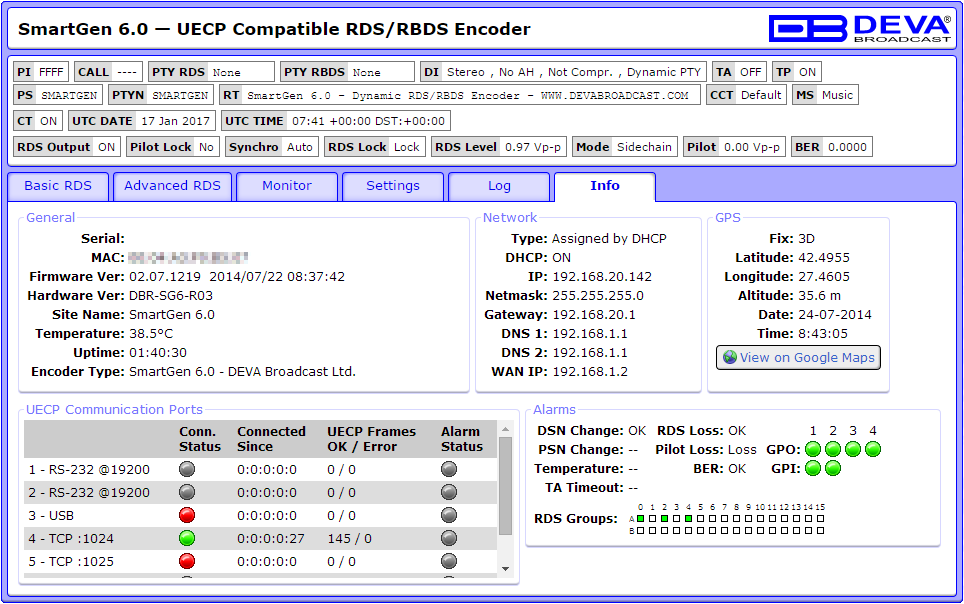

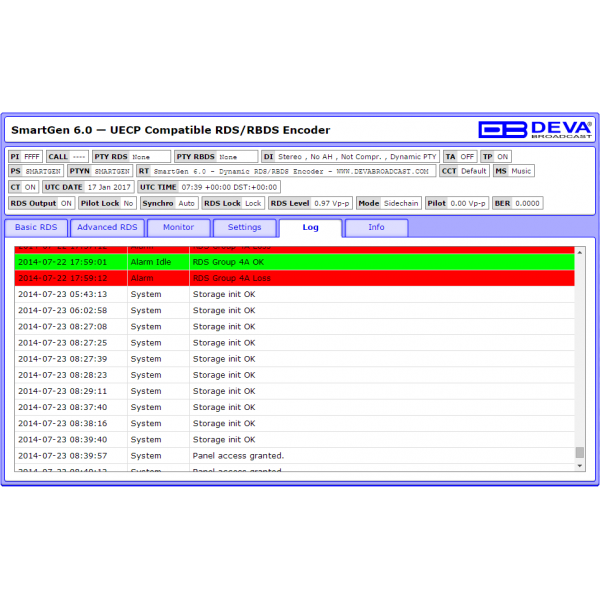

Configuration Embeded Web Server, SmartGen Manager
Password Protection Yes
ASCII Protocol Yes
UDP, TCP, HTTP, SNTP Yes

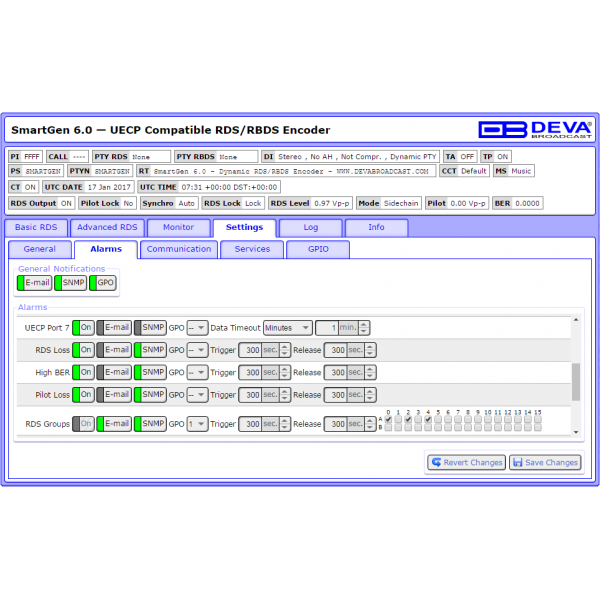

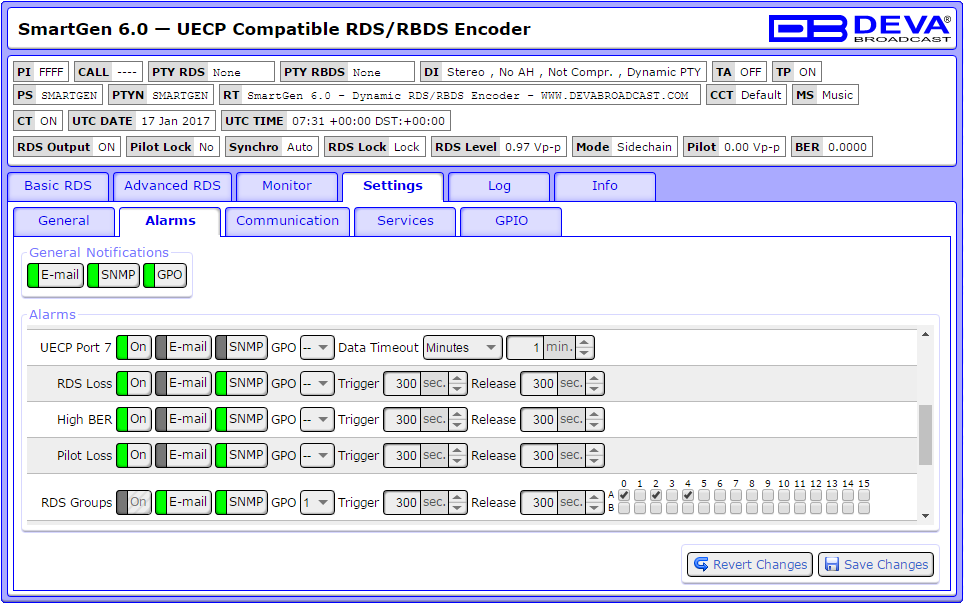

Alert notifications on user-defined events via SNMP traps or E-mails Yes
Embedded SNMP agent permitting active management tasks Yes
Custom HTML formatted E-mail templates with dynamic variables Yes
Supported Network Protocols: HTTP, FTP, SNMP, SNTP, SMTP, UPnP, UDP, TCP
UECP Protocol Fully compliant with EBU SPB490 Ver.7.05
PI <=> CALL Calculator Yes
Remote Display Yes
Supplied with Intuitive Software Yes
Comes with 2-years Limited Warranty Yes
Power
Voltage 100 - 240V; 50 - 60Hz
Power Consumption 15VA
Connector IEC320, Fused and EMI-suppressed
Size and Weight
Dimensions (W;H;D) 485 x 44 x 178 mm
Shipping Weight 540 x 115 x 300 mm / 2.455 kg
Характеристики
Тип
|
IP-аудио кодер RDS/RBDS+MPX |
Модель
|
DEVA Broadcast SmartGen 6.0 |
Производство
|
Болгария |
Цвет
|
Коричневый |
Габариты
|
485 x 44 x 178 mm |
Вес
|
2.5 кг. |
