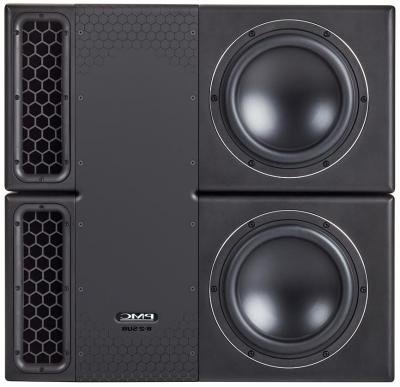

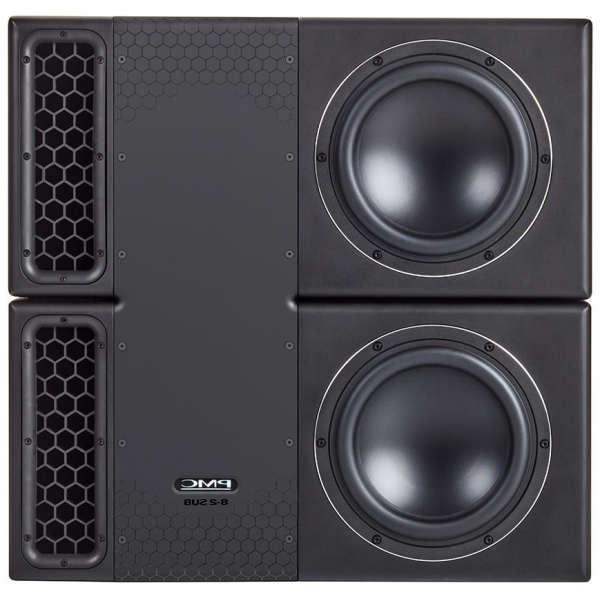

PMC8-2SUB-R
Описание
PMC8-2SUB-R активный студийный сабвуфер (правый)Технические характеристики:
Type Active subwoofer with twin 8-inch bass drivers and ATL™ bass loading
Drive unit complement LF PMC 200mm (8”) studio 8 driver
Effective ATL™ length 3m (9.8ft)
Frequency response 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
Sensitivity +4dBu input signal = 98dB SPL @ 1m
Max continuous SPL 109dB @1m
(Quarter space value calculated as +3dB from half space measurement.
Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Max Peak SPL 121dB @1m
(Quarter space value calculated as +3dB from half space measurement.
Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

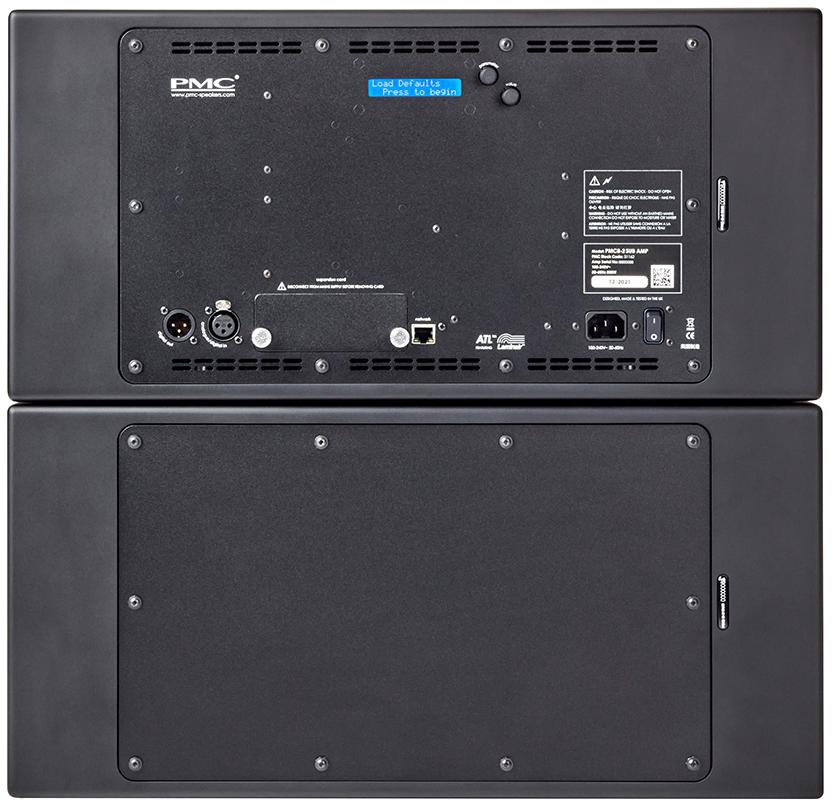

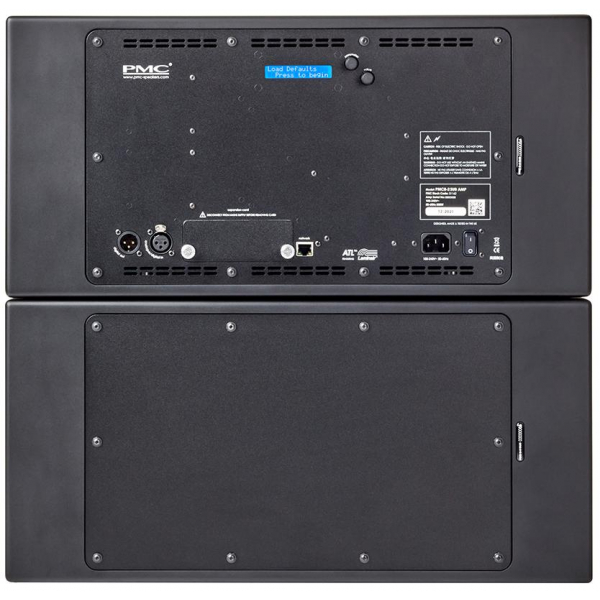

Input XLR switchable between analogue & digital AES3
Analogue input
- +20/+24dBu max. input level (selectable)
- 22K ohm input impedance
Digital input
- 16/24-bit AES3 signal, left, right or left + right
- 18 - 192kHz Sample Rate
- 110 ohm input impedance
Expansion card slot
- For future connectivity upgrades
Output XLR digital AES3 (fixed 24-bit @ 96kHz)
Network RJ45 for use with PMC SoundAlign web interface
Features Level Trim (+/-10dB)
High-pass/Low-pass filter (20 - 200Hz, 12dB/Oct)
Delay (0 - 30mS)
Phase (normal or inverted)
LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
User presets (3 + factory defaults)
Latency 2.4mS
Amplifier power 300Wrms
Mains 100 - 240VAC auto-switching, 50-60Hz (IEC C14)
Power consumption (idle) 25W
Power consumption (max) 300W
Cabinet dimensions H 266mm (10.5”) W 551mm (21.7”) D 440mm (17.3”)
Weight 18.5kg (40.8lbs) each
Available finishes Studio black
Характеристики
Тип
|
Активный студийный сабвуфер (правый) |
Модель
|
PMC8-2SUB-R |
Производство
|
Англия |
Цвет
|
Чёрный |
Габариты
|
266 x 551 x 440 мм |
Вес
|
37.5 кг |
