DEVA Broadcast DB44
Оставьте свой отзыв!
Код товара:
AS_УТ289
115 732 ₽
Достаточно
Нашли дешевле?
-
+
В корзину
Купить в 1 клик
ВНИМАНИЕ! На данный товар действует спецпредложение!
( Позвоните и уточните у менеджера свою персональную цену на этот товар )
( Позвоните и уточните у менеджера свою персональную цену на этот товар )
Описание
DEVA DB-44 Компактный FM приемник для мониторинга.| RF INPUT | |
| Frequency Range | 87.0 to 108 MHz, Frequency Agile |
| Step Increment | 50 kHz |
| Antenna Input | 50 Ω, BNC Connector, 10 dBµV sensitivity |
| Internal Attenuator | 0, 10, 20 and 30dB, auto |
| Dynamic Range | 0 dBµV to 100 dBµV |
| S/N | 57dB, RF > 60dBµV, 30dB, RF > 10dBµV |

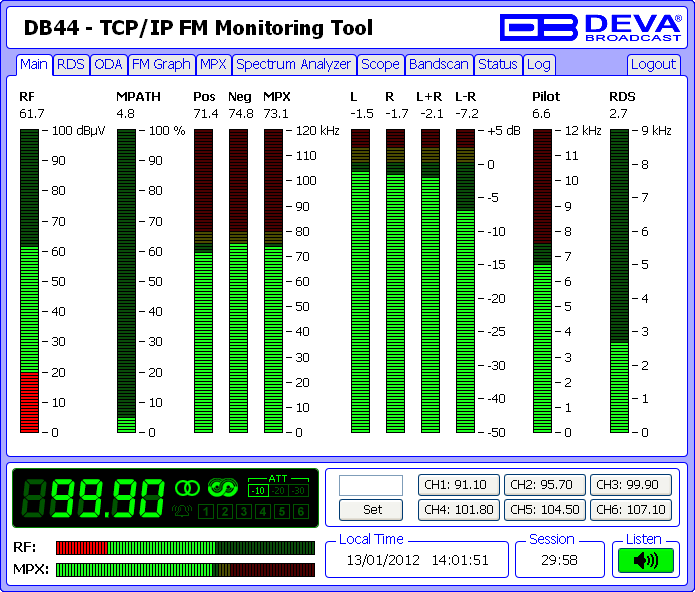

| METERING RESOLUTION & ACCURACY | |
| RF Level | 0 to 95 dBµV; resolution - 0.1 dBµV; accuracy - ±1 dB (10 to 85 dBµV) |
| Multipath | 0 to 100%; accuracy - ±1% |

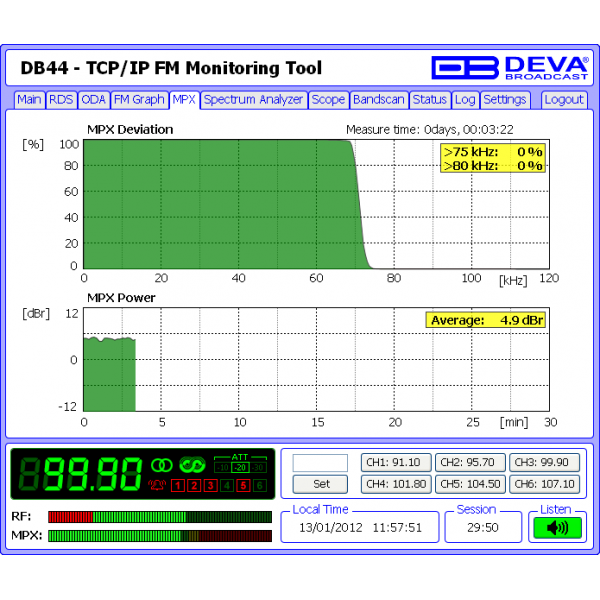

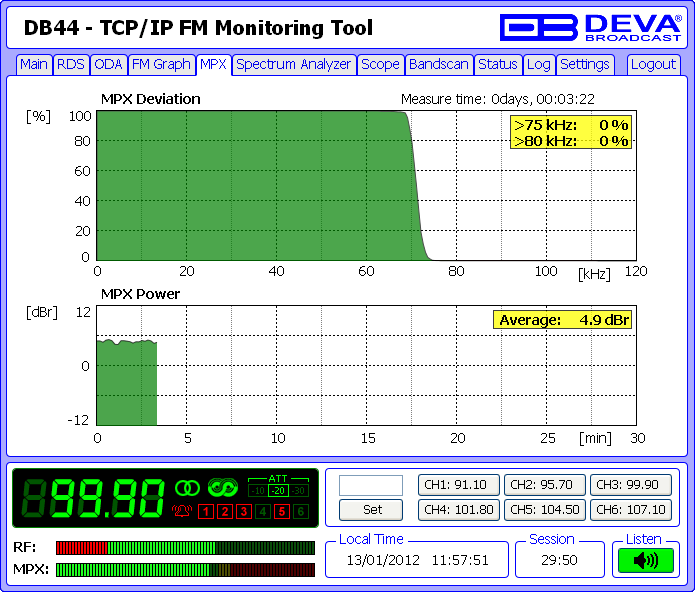

| MPX Deviation | ±120 kHz; resolution - 0.1kHz; accuracy - ±10%, ±5% typically |
| MPX Power | ±12 dBr; resolution - 0.1dBr, 10 sec. integration; accuracy - ±0.2 dBr |
| Audio Level | -50 to +5dB; resolution - 0.1dB; accuracy - ±5% |
| Pilot Level | 0 to 12 kHz; resolution - 0.1 kHz; accuracy - ±0.5 kHz, 1 to 12 kHz |
| RDS Level | 0 to 9 kHz; resolution - 0.1 kHz; accuracy - ±10% typical and not guaranteed |
| Audio, MPX, Pilot, RDS levels | |
| Validity | RF level preferably > 50dBµV |
| Multiplex Level | Peak level, 256 ksamples over 1 sec. |
| Audio Level | Peak level, 64 ksamples over 1 sec. |
| Pilot Level | Mean peak level, 256 ksamples over 1 sec. |
| RDS Level | Mean peak level, 256 ksamples over 1 sec. |
| STEREO DECODER | |
| Stereo Separation | >25dB, typical >30dB |
| De-emphasis | 50 or 75µs, Selectable |
| THD | 0.5% |
| OUTPUTS | |
| Audio stream | Icecast/Shoutcast compatible audio stream |

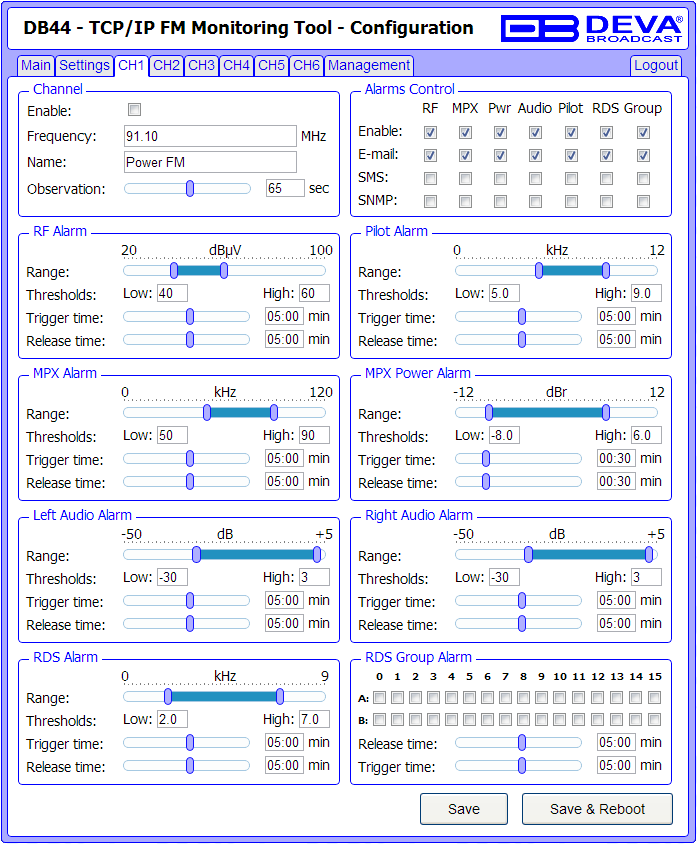

| Alarms | E-mail, SMS, SNMP |
| Headphone | 1/8" (3.5mm) Phone Jack |
| GSM Modem | 15-pin Male D-Sub Connector |

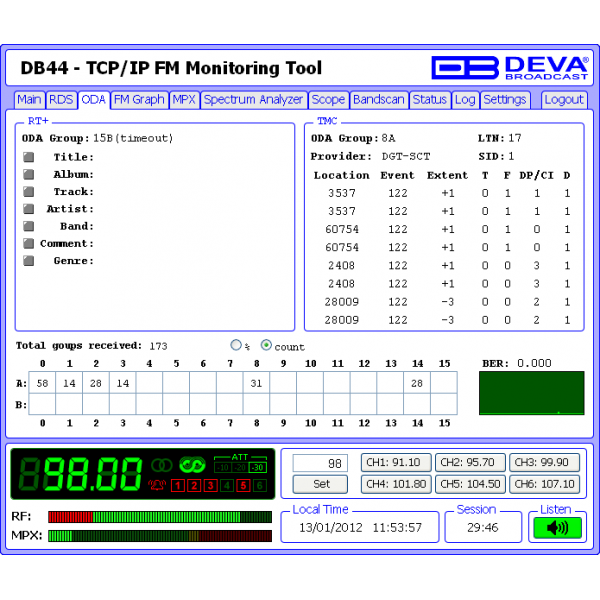

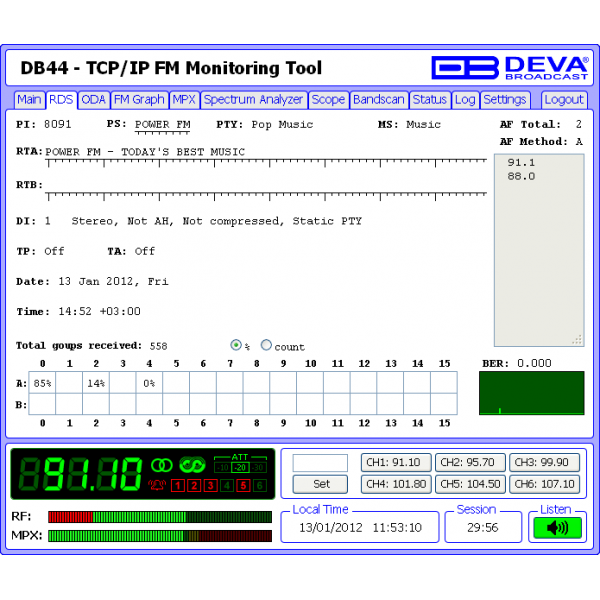

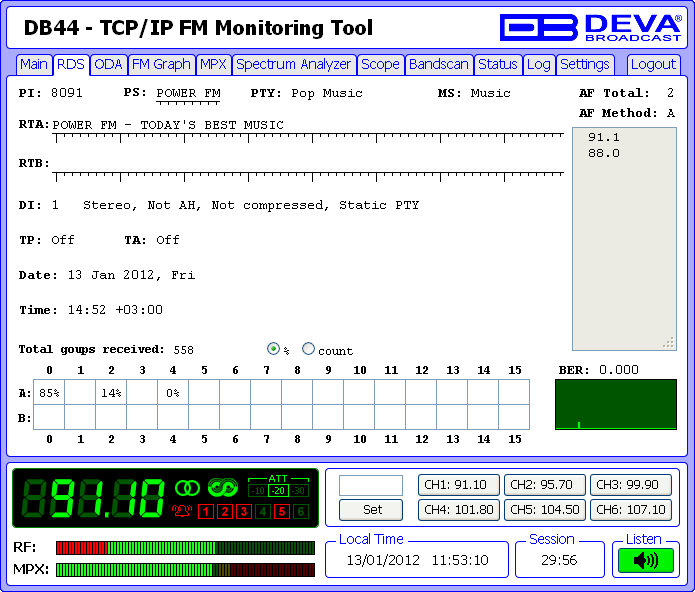

| RDS DATA DECODING | |
| Standards | European RDS CENELEC; United States RBDS NRSC |
| Error Correction & Counting | Yes |
| AF Decoding | Yes |
| CT (Time/Date) | Yes |
| PI, PTY, DI, MS | Yes |
| TA/TP | Yes |
| RT (Radio Text) | Yes |
| PS (Program Service name) | Yes |
| FFT SPECTRUM ANALYSIS | |
| Input | Composite MPX, Audio |
| Dynamic Range | 80 dB |
| FFT Length | 1024 |
| Sampling Rate | 256 kHz - Composite, 64 kHz - Audio |

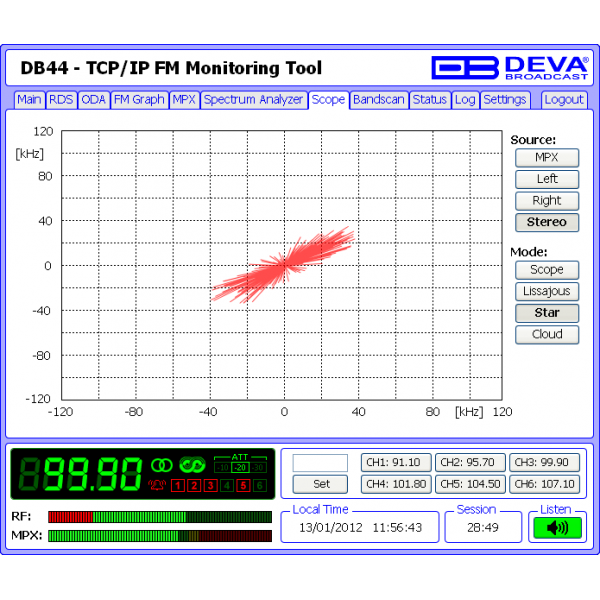

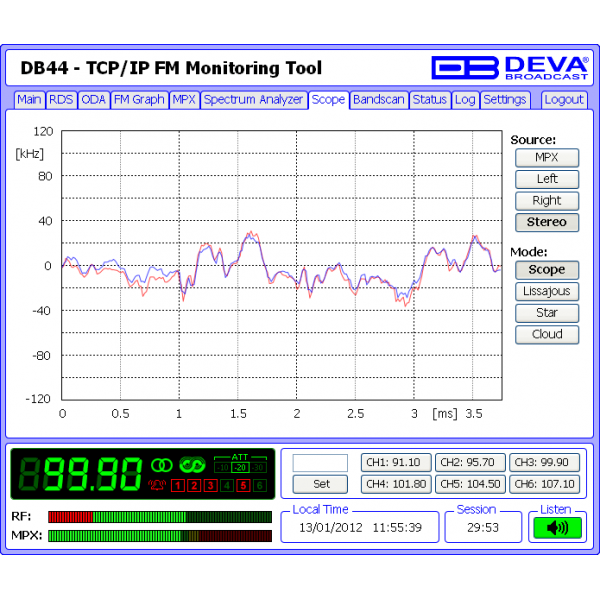

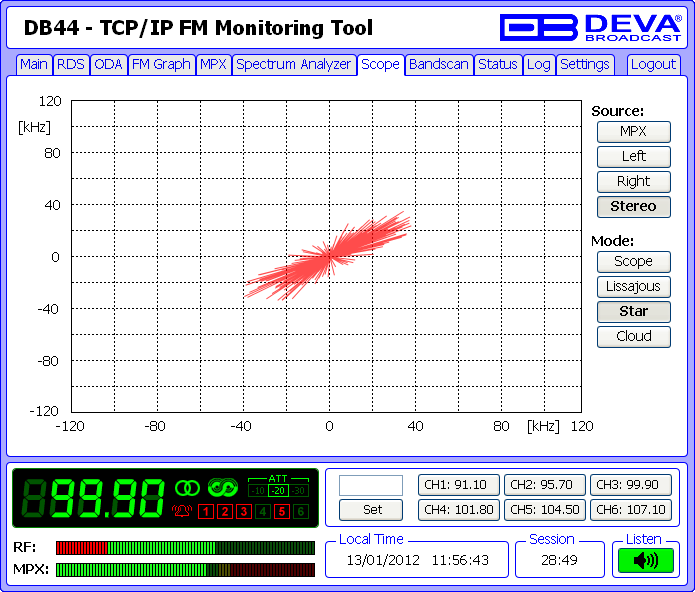

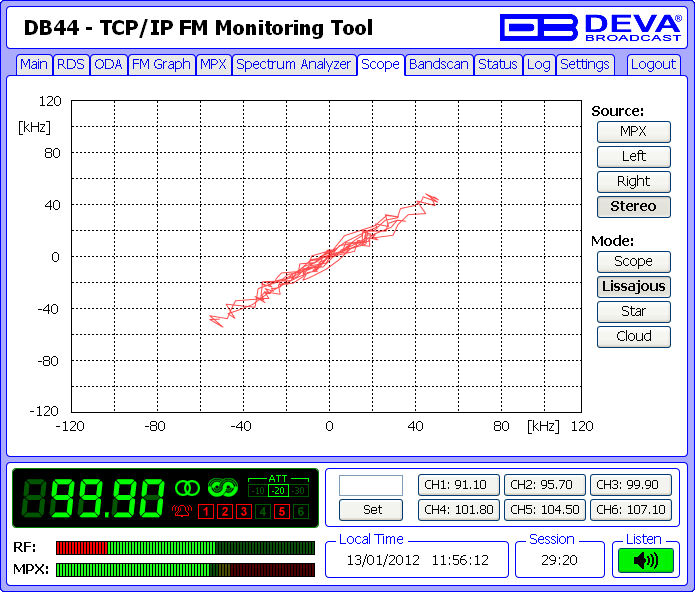

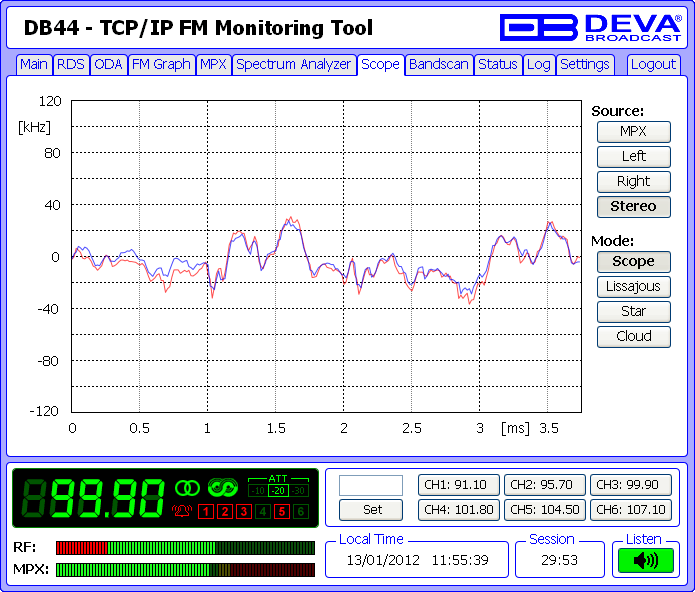

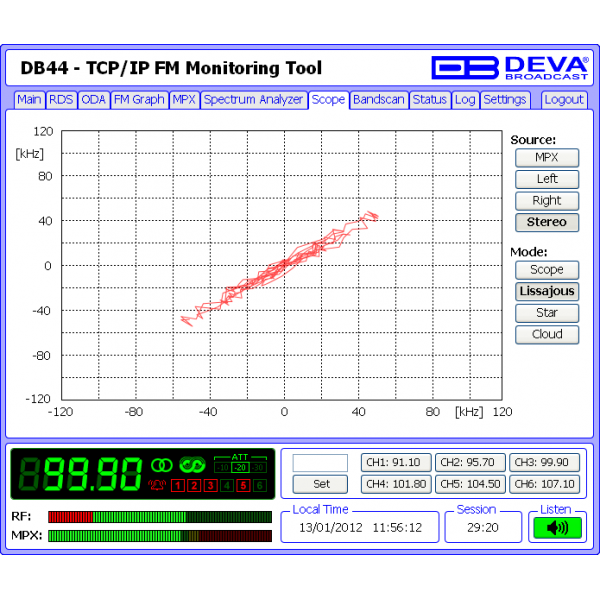

| SCOPE ANALYSIS | |
| Input | Composite MPX, Audio |
| Trigger Mode | Auto, Fall |
| Dynamic Range | ±120 kHz |
| Sampling Rate | 256 kHz - Composite, 64 kHz - Audio |
| USER INTERFACE | |

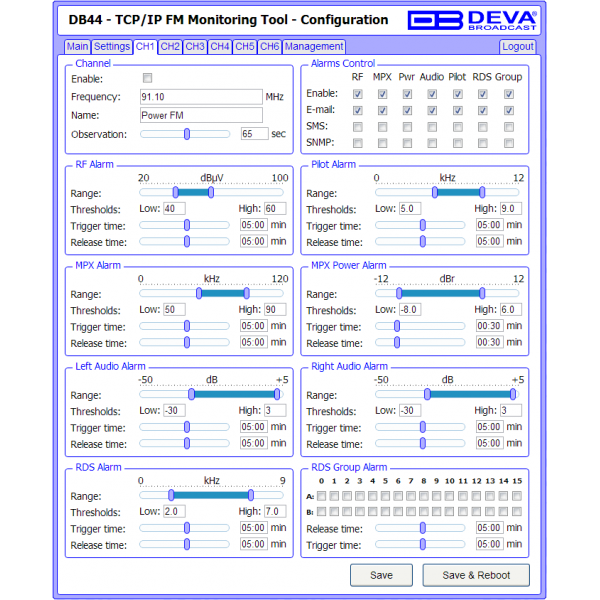

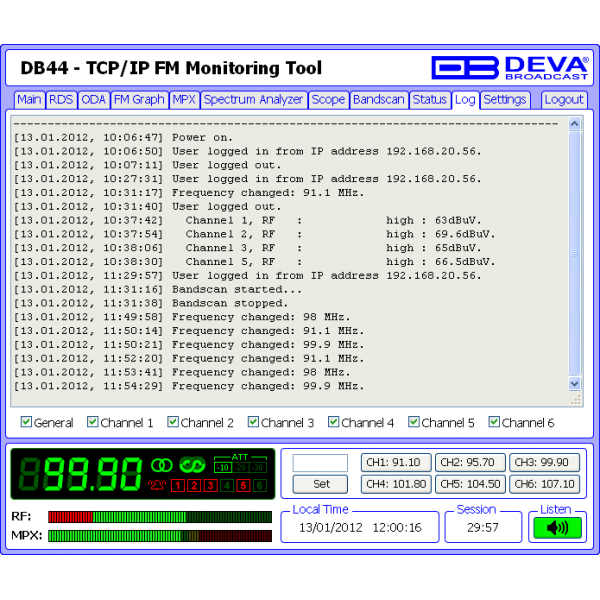

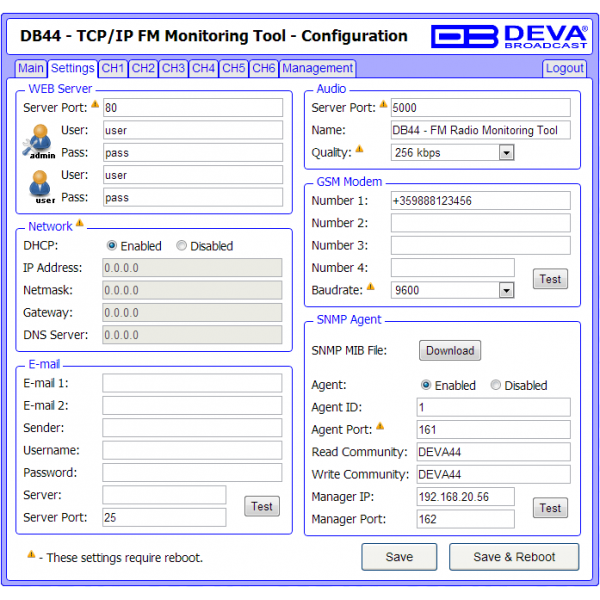

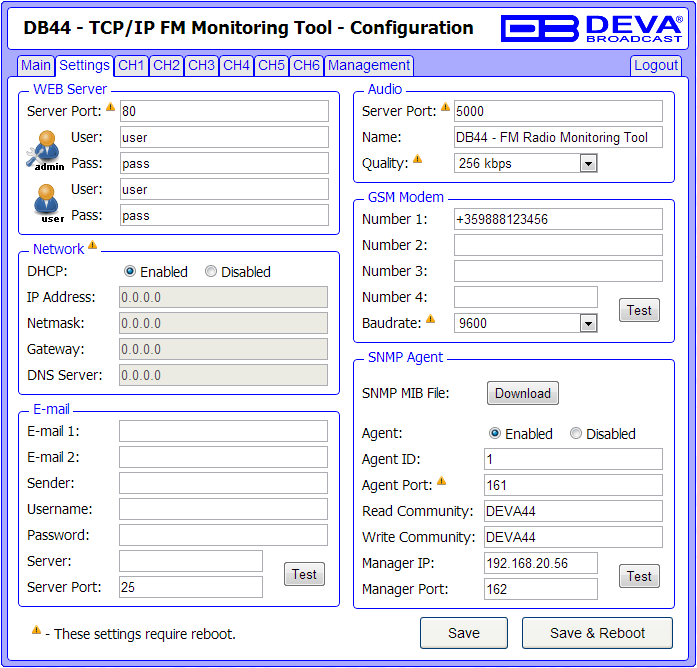

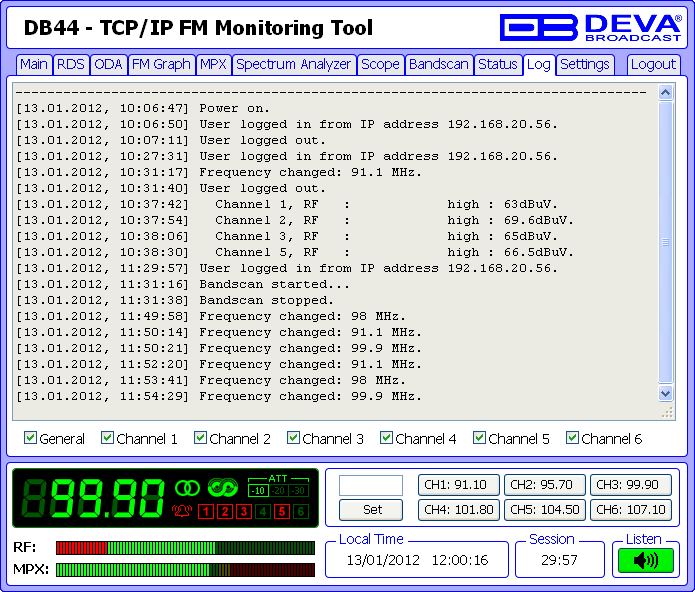

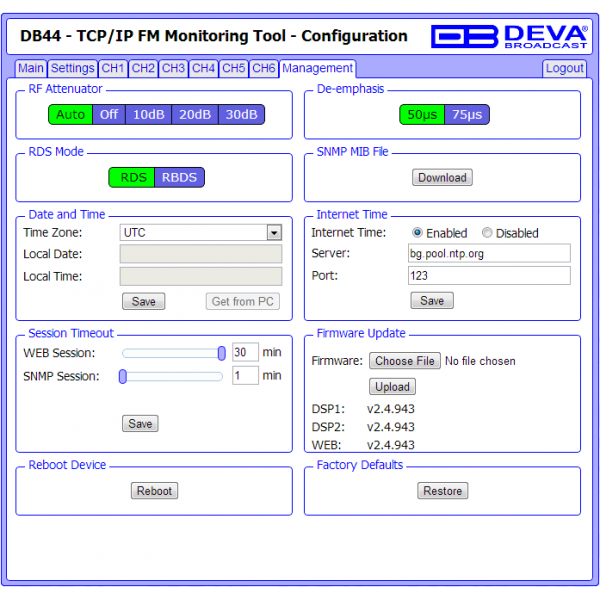

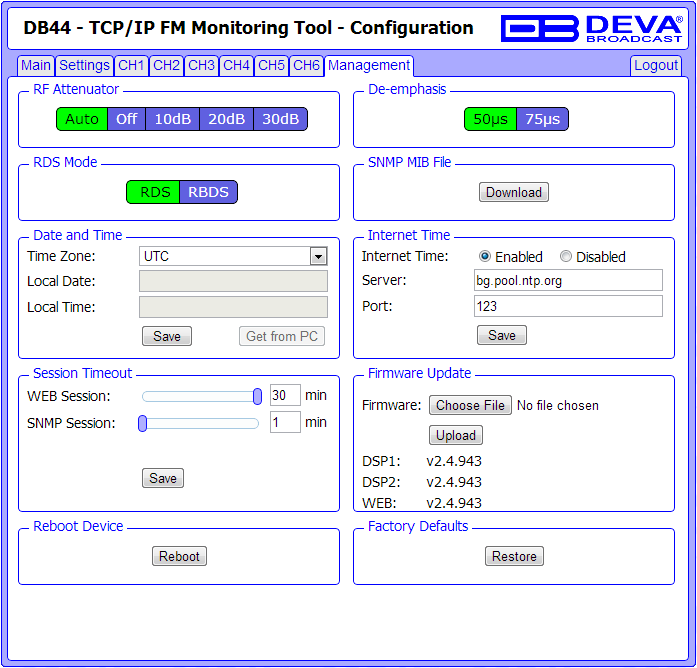

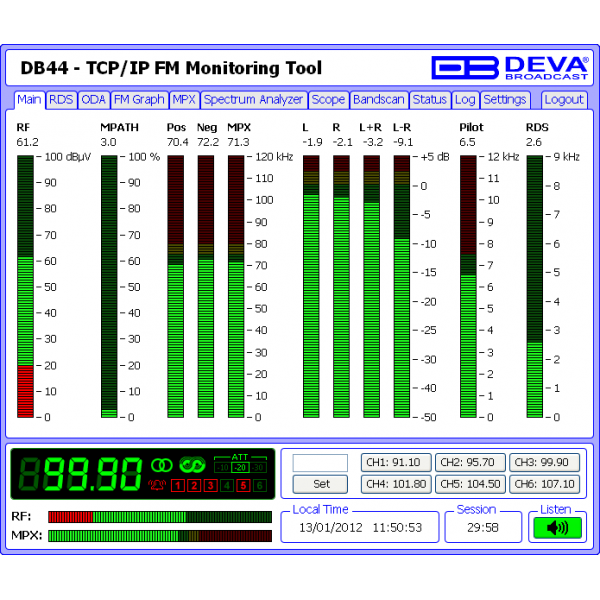

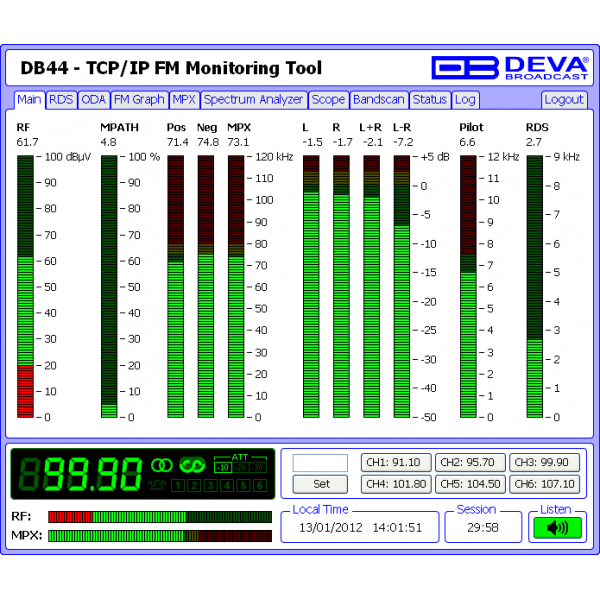

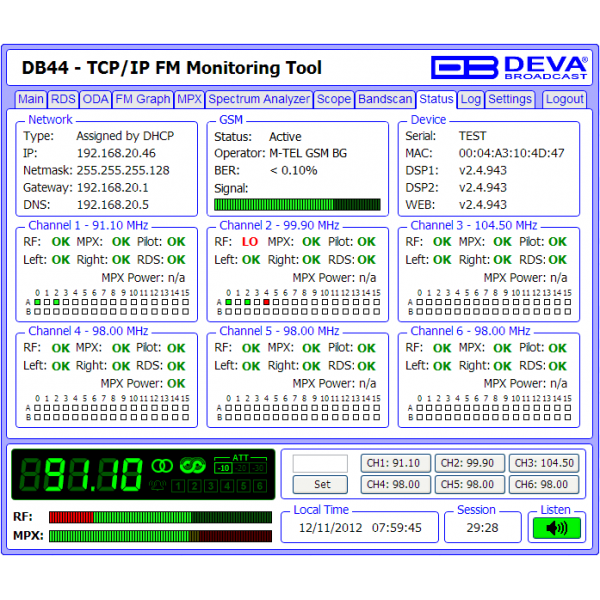

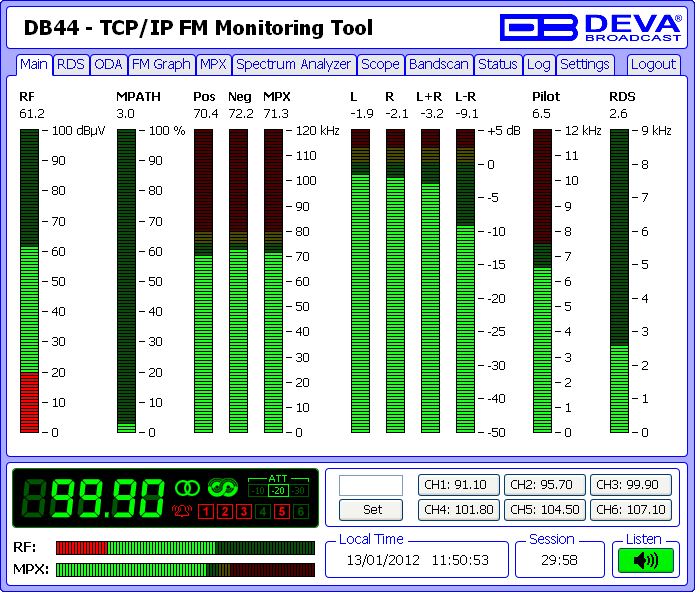

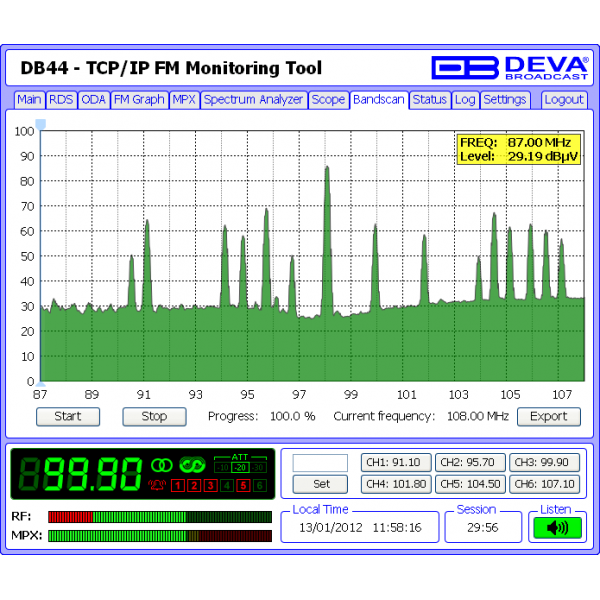

| Web interface | Full monitoring and control; Interactive and easy to use |

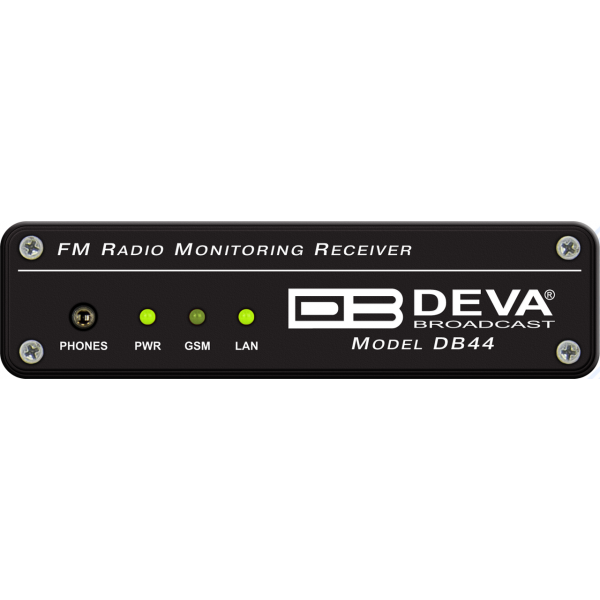

| Indicators | 3 LEDs (on front panel) |
| Headphone Output | 1/8" (3.5mm) phone jack (on front panel) |
| TCP/IP COMMUNICATION | |

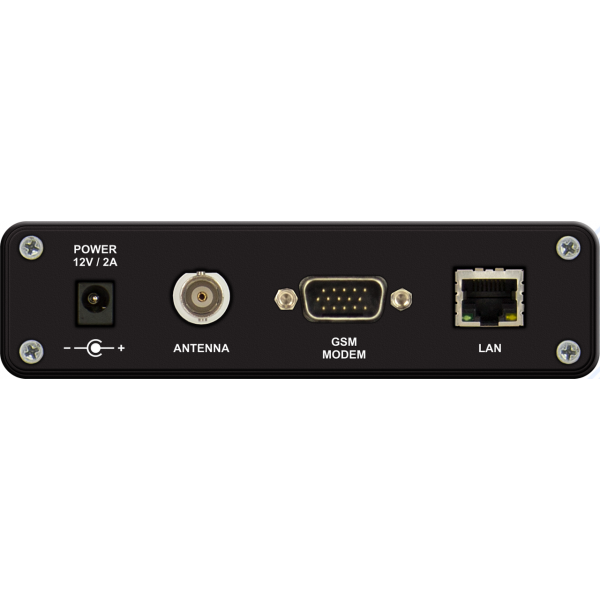

| Type | Ethernet 10/100M Base-T Port |
| Connector | RJ45 (on rear panel) |
| OPERATING CONDITIONS | |
| Temperature | 10° to 60°C |
| EMC Immunity | 6V/m |
| POWER | |
| Voltage | External, 12V/1A |
| Power Consumption | 12VA |
| SIZE AND WEIGHT | |
| Dimensions (W;H;D) | 125 x 31 x 160 mm |
| Shipping Weight | 270 x 54 x 230 mm / 1.054 kg |
Характеристики
|
Тип
|
Компактный мониторинговый FM-приемник с Ethernet портом |
|
Модель
|
DEVA Broadcast DB44 |
|
Производство
|
Болгария |
|
Цвет
|
Чёрный |
|
Габариты
|
125 x 31 x 160 мм |
|
Вес
|
1.1 кг |
Документы
db44_user_manual
1,9 мб
db44_brochure
1,4 мб
db44-quick-user-guide
479,6 кб
deva_device_manager_update_manual
961,2 кб
deva_device_manager_user_manual
11,7 мб
